G80
Ruilida

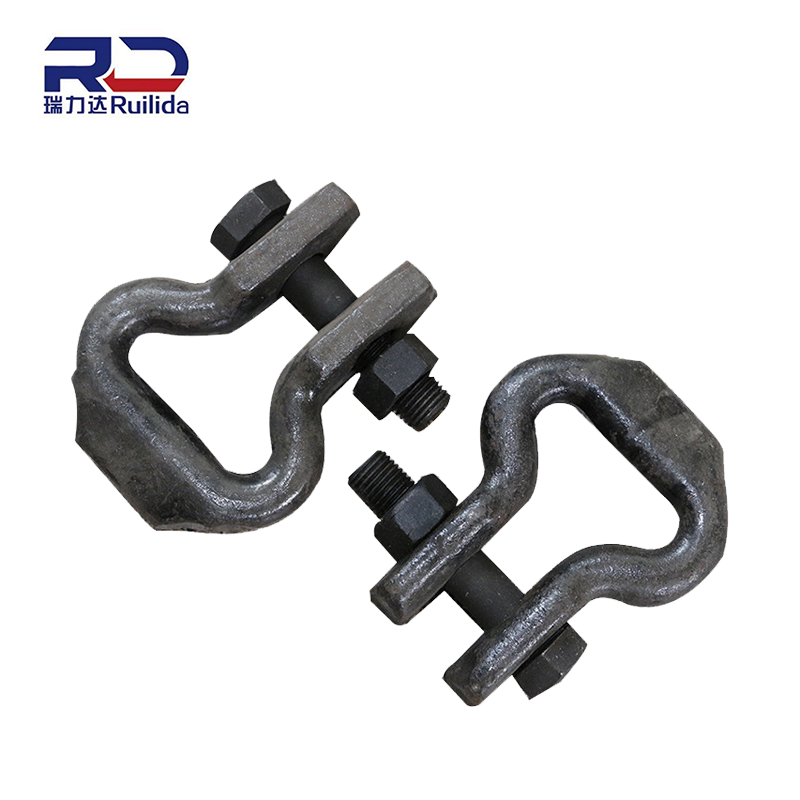

Application:
Used to connect round link chains (can be used as flat links or vertical links), mining compact chains(can only be used as flat links), and can also be used for other connections.
All arc tooth connecting links100% pass the test, and the test load is 75%-90% of the breaking load.
Main technical specifications and mechanical properties
| specifications | b | p | test load grade (KN) | fracture load level C (KN) | ||||
| rated size | extreme deviation | rated size | extreme deviation | |||||
| 18x64 | 20 | ±0.5 | 64 | ±0.6 | 232 | 300 | 290 | 370 |
| 22x86 | 23 | ±1 | 86 | ±1 | 415 | 550 | ||
| 26x92 | 27 | 92 | 575 | 765 | ||||
Please contact us for detailed specifications. We promise a prompt reply.
