G80
Ruilida
Product Description

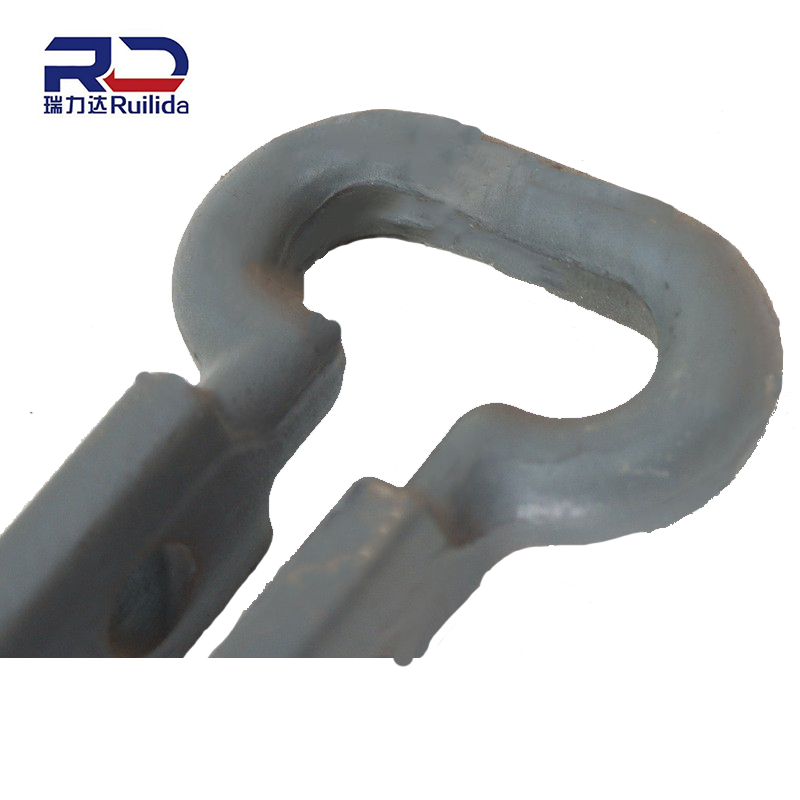

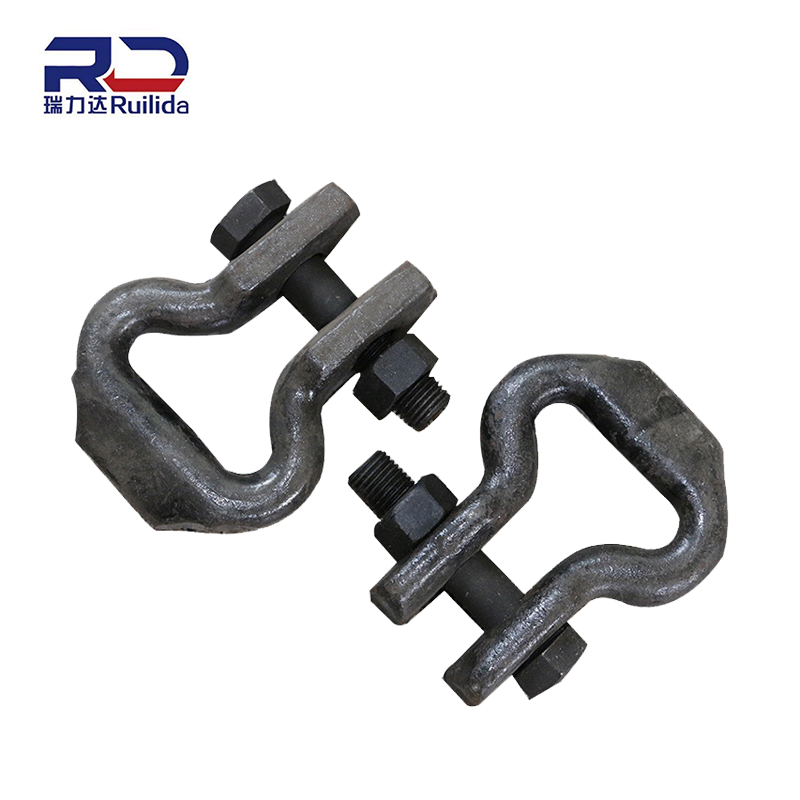

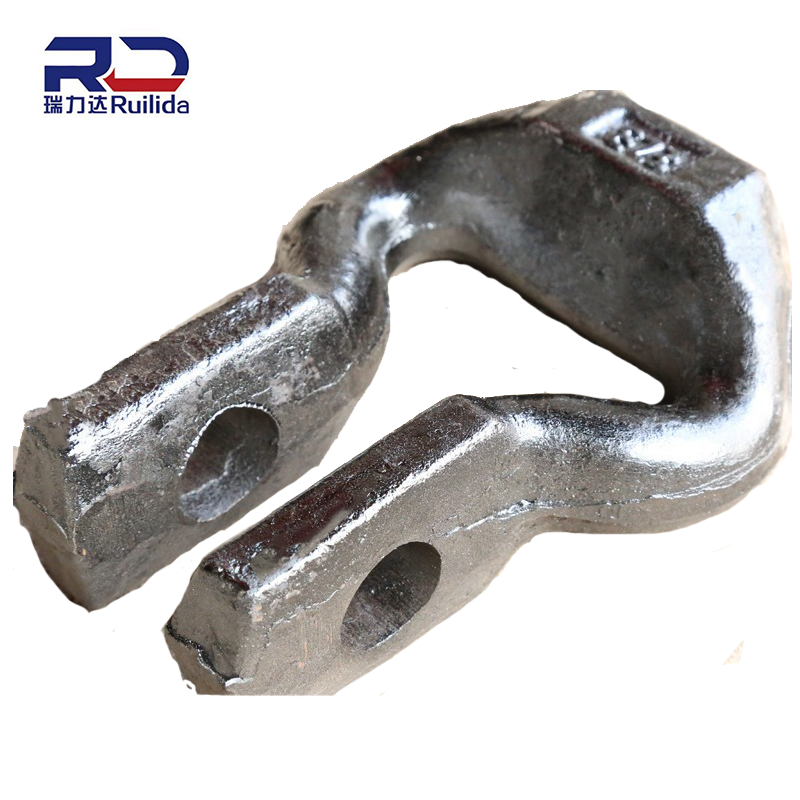

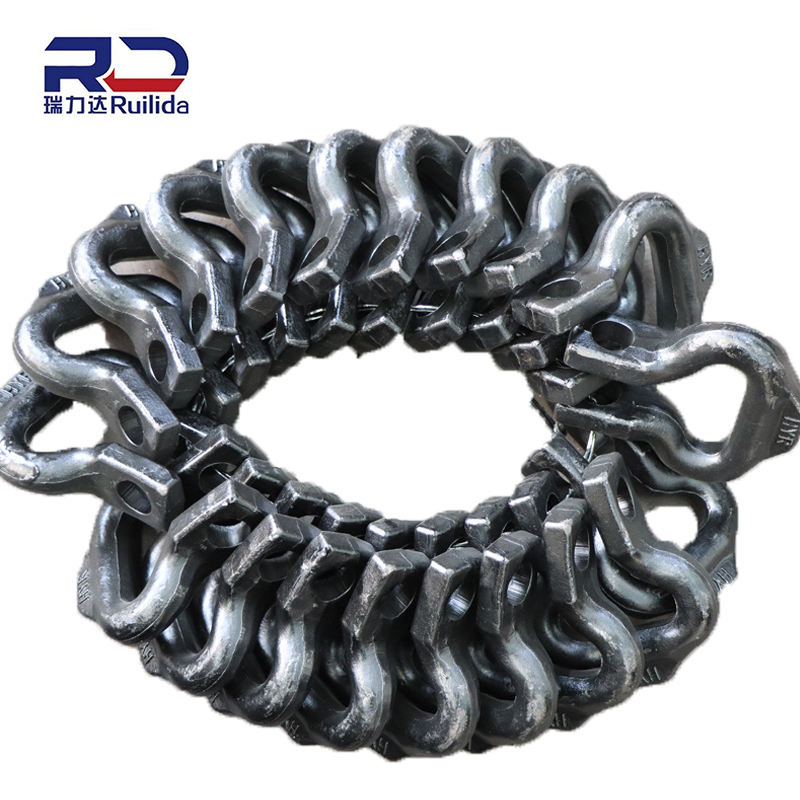

High Strength G80 Cyanide-Free Plated Open Connecting Link - FDA-Compliant for Food Conveyors
Application:
Used to connect round link chains (can be used as flat links or vertical links), mining compact chains(can only be used as flat links), and can also be used for other connections.
All arc tooth connecting links100% pass the test, and the test load is 75%-90% of the breaking load.

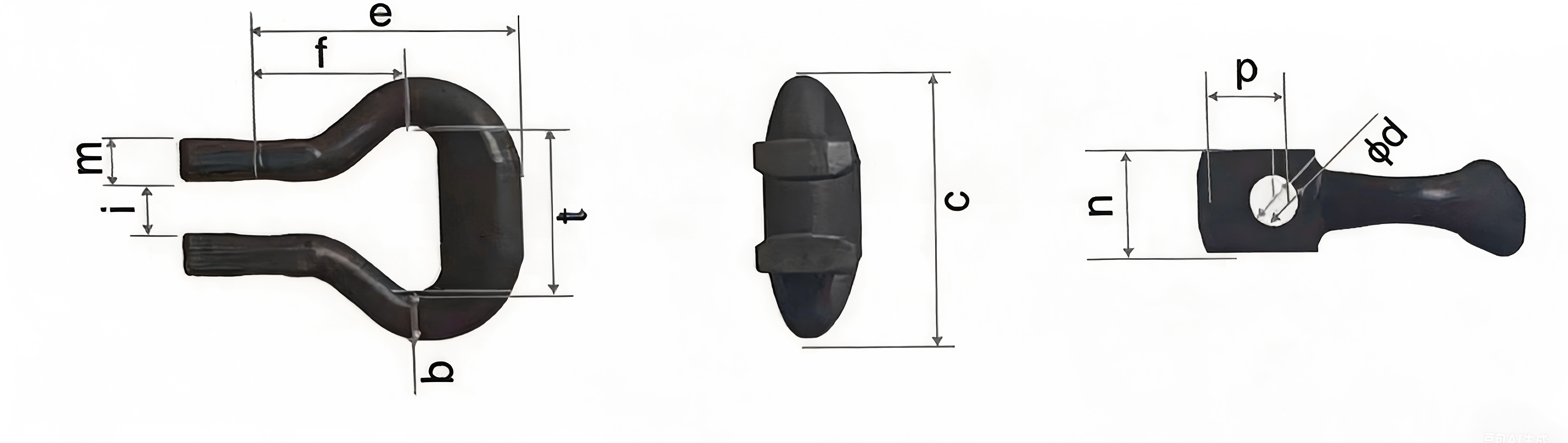

Size:
| specifications and dimensions | b | f | c | d | e | i | m⁺⁰₋₁ | n | p | f | weight |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] |
| 18x64 | 20 | 64 | 103 | 21 | 95 | 50 | 18 | 38 | 24 | 55 | 0.9 |
| 22x86 | 23 | 86 | 132 | 25 | 133 | 26 | 23 | 52 | 44 | 75 | 2.6 |
| 26x92 | 27 | 92 | 147 | 28 | 141 | 30 | 27 | 58 | 44 | 85 | 3.8 |
Main technical specifications and mechanical properties
| specifications | b | p | test load grade (KN) | fractur load level C (KN) | ||||
| extreme deviation | rated size | extreme | deviation | |||||
| 18x64 | 20 | ±0.5 | 64 | ±0.6 | 232 | 300 | 290 | 370 |
| 22x86 | 23 | ±1 | 86 | ±1 | —— | 415 | —— | 550 |
| 26x92 | 27 | 92 | —— | 575 | —— | 765 | ||
Company Introduction
Taian Ruili Machinery Equipment Manufacturing Co., Ltd. is a premier manufacturer with over two decades of expertise in producing high-quality industrial chains and rigging hardware.We specialize in mining chains,lifting chains,anchor chains,and rigging equipment
Qualification Certificate
FAQ
Q:Are you a trading company or manufacture?
A: We are a real manufacturer, specialized in chain production for more than 20 years.
Q: Can you manufacture customized products?
A: Yes, we can manufacture the products you want as long as you
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, etc
Q. What are your terms of delivery?
A: EXW, FOB. CFR, CIF
Q: What are your terms of payment?
A: Payment<= 5000 USD, 100% in advance. Payment> 5000 USD, 30% T/T in advance, balance before shipment.
Q.:What's your usual packing?
A: We usually use cartons, wooden cases and pallets. If you have any special requirements, we would be glad to pack the goods according to your requirements.
Q: Could you give me a sample before placing an order?
A: Sure! Usually you need to pay for samples and express delivery.
Q:Why choose our product?
A:We have our own factory--Tai'an Ruili Machinery Equipment Manufacturing Co., Ltd., therefore, we can surely promise the quality of every product and provide you with comparable prices.
