G80
Ruilida
Application:
Application:

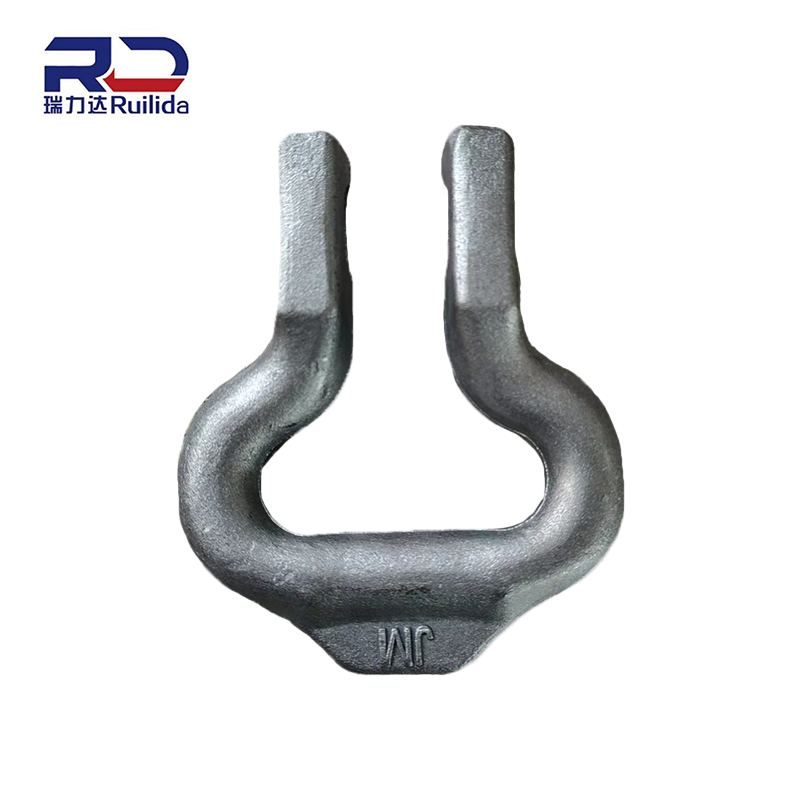

Used to connect round link chains (can be used as flat links or vertical links), mining compact chains(can only be used as flat links), and can also be used for other connections.
All arc tooth connecting links100% pass the test, and the test load is 75%-90% of the breaking load.
The compact mining chain can replace the commonly used round link chain of the same nominal diameter,
and there is no need to modify the original scraper conveyor. The product is made of highly optimized steel
as raw material, and the quality of raw materials is strictly controlled. At the same time, every stage and every
link of the chain production process is closely monitored to strictly control the quality of each production link.
The company has a rich variety of products and a full range of product grades.
Size
| size | b | t | c | d | e | i | m | n | p | f | weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 18×64 | 20 | 64 | 103 | 21 | 95 | 20 | 18 | 38 | 24 | 55 | 0.9 |
| 22×86 | 23 | 86 | 1432 | 25 | 133 | 26 | 23 | 52 | 44 | 75 | 2.6 |
| 26×92 | 27 | 92 | 147 | 28 | 141 | 30 | 27 | 58 | 44 | 8 | 3.8 |
| size | b Nominal size | b Limit deviation | p Nominal size | p Limit deviation | Test load Class B (KN) | Test load Class B (KN) | Test load Class C (KN) | Test load Class C (KN) |
| 18×64 | 20 | ±0.5 | 64 | ±0.6 | 232 | 300 | 290 | 370 |
| 22×86 | 23 | ±1 | 86 | ±1 | \ | 415 | \ | 550 |
| 26×92 | 27 | ±1 | 92 | ±1 | \ | 575 | \ | 765 |
Our advantages:
1. Carefully select materials and use thickened materials that meet industry standards without cutting corners.
2. Through quality control, the solid structure of the test product has been finely processed, with high strength and not easy to wear.
3. Provide customized services and can customize various specifications according to customer requirements.
4. With many years of industry production experience and reliable quality.
5. Serving customers and satisfying customers is our purpose
1.Q:Are you a trading company or manufacture?
A: We are a real manufacturer, specialized in chain production for more than 20 years.
2.Q: Can you manufacture customized products?
A: Yes, we can manufacture the products you want as long as you
3.Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, etc
4.Q. What are your terms of delivery?
A: EXW, FOB. CFR, CIF
5.Q: What are your terms of payment?
A: Payment<= 5000 USD, 100% in advance. Payment> 5000 USD, 30% T/T in advance, balance before shipment.
