G100/G80
Ruilida
Product Description

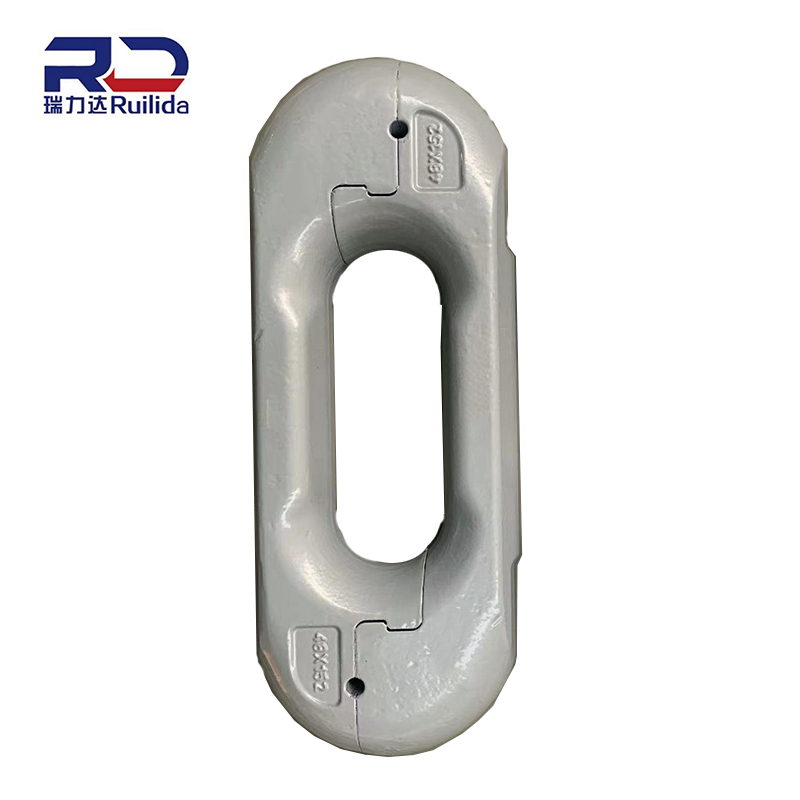

Used for round link chains made according to DIN22258-3 standard or compact chain links made according to DIN22255 standard,
it can only be used as a vertical link. Due to its sturdy and well-matched structure, it is very convenient to install,
regardless of its working direction, fast and simple! At the same time, due to its unique structural characteristics,
its strength parameters are enhanced and its service life is extended.
Size
specifications and dimensions dxt(p) | t=p | l maximum value | c maximum value | b1 minimum value | b2 maximum value | minimum elongation at break | weight |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [KN] | [kg] |
| 34x126 | 126 | 297 | 36 | 37 | 99 | 1700 | 6.3 |
| 38x126 | 126 | 290 | 40 | 41 | 111 | 1910 | 7.5 |
| 38x137 | 137 | 322 | 40 | 41 | 111 | 1910 | 8.6 |
| 42x146 | 146 | 341 | 46 | 45 | 115 | 2300 | 10.4 |
| 48x144 | 144 | 334 | 56 | 51 | 127 | 2900 | 10.9 |
| 48x152 | 152 | 342 | 56 | 51 | 127 | 2900 | 12.7 |
| 56x187 | 187 | 412 | 65 | 60 | 131 | 4300 | 15 |
| 60x181 | 181 | 455 | 70 | 64 | 137 | 4900 | 20.7 |
Other serial sizes,such as 56x189-131,60xz89-135
The size of the connecting ring is suitable for Fashing 42x146-100
We can customize manufacturing according to customer requirements.
Installation:
Ruili connection rings are equipped with installation and disassembly tools,depending on the type of connecion ring.The kit includes punches,special wrenches,hexagonal wrenches that comply with ISO2936 and DIN911,etc.Please refer to Attachment 1 for details.
