G80
Ruilida
Product Description

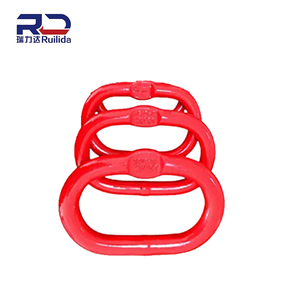

Four-limbed flexible ring
Purpose
Designed and manufactured according to professional standards, it is used for three-limbed and four-limbed slings and can be used in combination with crane round link chains and short-link lifting chains.
Dimensions and mechanical properties
| serial number | diameter of matching round link chain | main dimensions | weight | ultimate working load | |||
| d | A | B | R | ||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (t) | |
| 01 | 6/7 | 18 | 135 | 75 | 201 | 1.88 | 2.8 |
| 02 | 8 | 22 | 160 | 90 | 245 | 4.32 | 4.2 |
| 03 | 10 | 26 | 180 | 100 | 282 | 6.64 | 6.7 |
| 04 | 13 | 32 | 200 | 110 | 322 | 12.82 | 10.5 |
Ruili Engineering and Technology experts accept the customization of limbs flexible rings required by customers under special conditions
Safety guarantee:4 times safety factor,2.5 times proof load.
