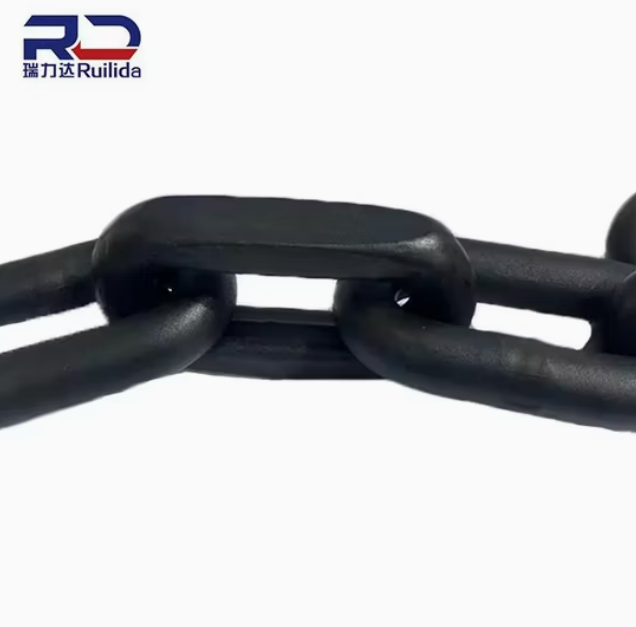

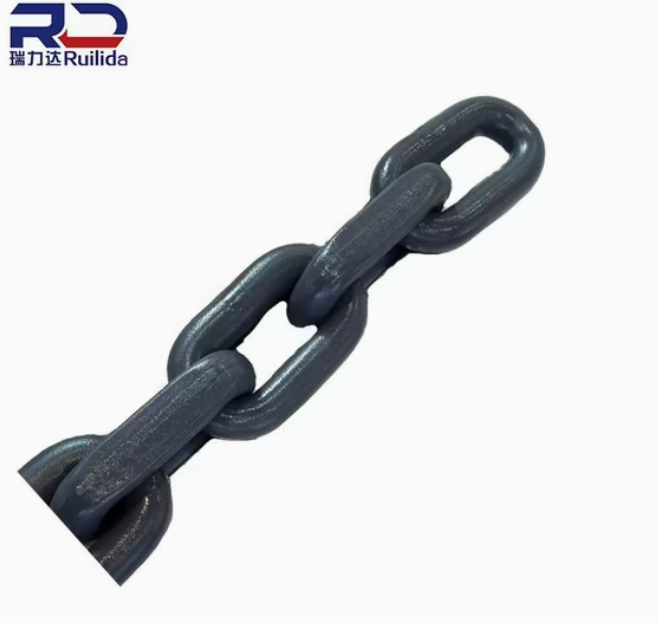

Custom-Length Round Link Chain

Availability:

Quantity:



Inquire Add to Basket

Model:
G100/G80
Brand:
Ruilida

Product Description

Product Description

Applications
Scraper conveyors, scraper transfer machines, coal mining machines, tunneling machines, coal plows and other equipment that use this chain
Material
High-quality alloy steel
Manufacturing standards
ISO, DIN, BS, GB and other standards
Strength grades
Grade 100 (Grade D), Grade 80 (Grade C), Grade 63 (Grade B)

Safety guarantee
Verification load: minimum breaking load x 80%

Product Parameters

Direct Factory Custom Mining Link Welded Chains

Size d×p	Diameter d	Pitch t=p	Circular ring b1 minimum value	Circular ring b2 maximum value	Vertical ring b3 minimum value	Vertical ring b4 maximum value	e maximum value	Weight
mm	mm	mm	mm	mm	mm	mm	mm	kg/m
22×86	22±0.7	86±0.8	27	74	26	61	27	9.9
26×92	26±0.8	92±0.9	30	81	28	74	30	12.2
30×108	30±0.9	108±1.1	35	98	34	869	34	17.7
34×126	34±1.0	126±1.3	39	109	38	97	38	22.3
38×126	38±1.1	126±1.3	41	121	42	110	42	30.1
38×137	38±1.1	137±1.4	41	121	42	110	42	29.0
42×146	42±1.1	146±1.5	48	135	46	115	48.5	36.0

Mechanical behavior

Size d×p	Grade	Test load	Minimum breaking load	Maximum elongation under test load	Maximum elongation under test load	Minimum fatigue strength
mm		KN	KN	%	%	Number of cycles
22×86	C	456	608	1.6	11	70000
22×86	D	530	760	1.4	11	90000
26×92	C	637	850	1.6	11	70000
26×92	D	740	1060	1.4	11	90000
30×108	C	848	1130	1.6	11	70000
30×108	D	990	1400	1.4	11	90000
34×126	C	1090	1450	1.6	11	70000
34×126	D	1270	1800	1.4	11	90000
38×126	C	1360	1820	1.6	11	70000
38×126	D	1590	2270	1.4	11	90000
38×137	C	1360	1820	1.6	11	70000
38×137	D	1590	2270	1.4	11	90000
42×146	C	1660	2220	1.6	11	70000
42×146	D	1940	2770	1.4	11	90000

FAQ

1.Q:Are you a trading company or manufacturer?

A: We are a real manufacturer, specialized in chain production for more than 20 years.

2.Q: Can you manufacture customized products?

A: Yes, we can manufacture the products you want as long as you need.

3.Q: What is your payment term?

A: We provide kinds of payment terms such as L/C, T/T, Paypal, etc.

4.Q. What are your terms of delivery?

A: EXW, FOB. CFR, CIF.

5.Q: What are your terms of payment?

A: Payment<= 5000 USD, 100% in advance. Payment> 5000 USD, 30% T/T in advance, balance before shipment.

6.Q.:What's your usual packing?

A: We usually use cartons, wooden cases and pallets. If you have any special requirements, we would be glad to pack the goods according to your requirements.

7.Q: Could you give me a sample before placing an order?

A: Sure! Usually you need to pay for samples and express delivery.
