Grade 100 Round Link Chain - Cost-Effective for Construction Scaffolding & Temporary Lifts

Availability:

Quantity:



Inquire Add to Basket

Model:
G100/G80
Brand:
Ruilida

Product Description

Product Description

Applications
Scraper conveyors, scraper transfer machines, coal mining machines, tunneling machines, coal plows and other equipment that use this chain
Material
High-quality alloy steel
Manufacturing standards
ISO, DIN, BS, GB and other standards
Strength grades
Grade 100 (Grade D), Grade 80 (Grade C), Grade 63 (Grade B)
Safety guarantee
Verification load: minimum breaking load x 80%

Product Parameters

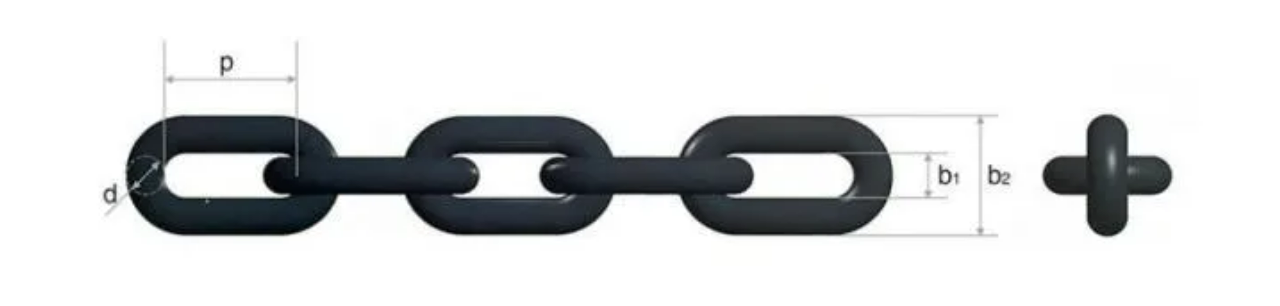

Size d×p	Diameter d	Pitch p	Minimum inner width b1	Maximum outer width b2	Weight
[mm]	[mm]	[mm]	[mm]	[mm]	[kg/m]
14×50	14±0.5	50±0.6	17	48	4
18×64	18±0.5	64±0.5	21	60	6.6
22×86	22±0.7	86±0.9.	26	74	9.5
24×86	24±0.7	86±0.9	28	79	11.6
26×92	26±0.8	92±0.9	30	86	13.7
30×108	30±0.9	108±1.1	34	98	18.0
34×126	34±1.0	126±1.2	38	109	22.7
38×126	38±1.1	126±1.2	42	121	30.1
38×137	38±1.1	137±1.4	42	121	29.0
42×146	42±1.1	146±1.5	46	133	36.0

Mechanical behavior

Size d×p(mm)	Minimum inner width d1(mm)	Maximum outer width d2(mm)	Arc radius r(mm)	Weight kg/m	Test load KN	Maximum test elongation %	Minimum breaking load KN	Minimum breaking elongation %
10×40B	12	34	15	1.9	85	1.4	110	12
10×40C	12	34	15	1.9	100	1.6	130	12
14×50B	17	48	22	4	150	1.4	190	12
14×50C	17	48	22	4	200	1.6	250	12
18×64B	21	60	28	6.6	260	1.4	320	12
18×64C	21	60	28	6.6	330	1.6	410	12
22×86B	26	74	34	9.5	380	1.4	480	12
22×86C	26	74	34	9.5	490	1.6	610	12
26×92C	30	86	40	13.7	680	1.6	850	12
26×92D	30	86	40	13.7	848	1.9	1060	12
30×108C	34	98	46	18	900	1.6	1130	12
30×108D	34	98	46	18	1130	1.9	1410	12
34×126C	38	109	52	22.7	1160	1.6	1450	12
34×126D	38	109	52	22.7	1452	1.9	1815	12
38×137C	42	121	58	29	1360	1.6	1810	12
38×137D	42	121	58	29	1820	1.9	2270	12
42×146C	46	135	64	36	1660	1.6	2220	12
42×146D	46	135	64	36	2220	1.9	2770	12

FAQ

1.Q:Are you a trading company or manufacturer?

A: We are a real manufacturer, specialized in chain production for more than 20 years.

2.Q: Can you manufacture customized products?

A: Yes, we can manufacture the products you want as long as you need.

3.Q: What is your payment term?

A: We provide kinds of payment terms such as L/C, T/T, Paypal, etc.

4.Q. What are your terms of delivery?

A: EXW, FOB. CFR, CIF.

5.Q: What are your terms of payment?

A: Payment<= 5000 USD, 100% in advance. Payment> 5000 USD, 30% T/T in advance, balance before shipment.

6.Q.:What's your usual packing?

A: We usually use cartons, wooden cases and pallets. If you have any special requirements, we would be glad to pack the goods according to your requirements.

7.Q: Could you give me a sample before placing an order?

A: Sure! Usually you need to pay for samples and express delivery.
