Galvanized Weldless Ring for Heavy-Duty Rigging G80/G100 High Strength

Availability:

Quantity:



Inquire Add to Basket

Model:
G80/G100
Brand:
Ruilida

Product Description

Product Description

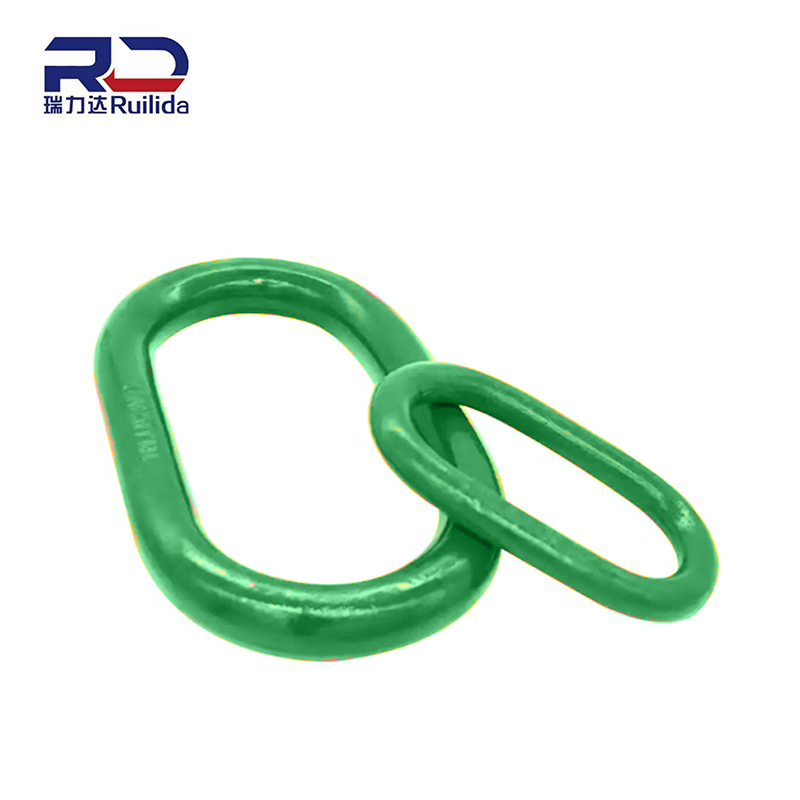

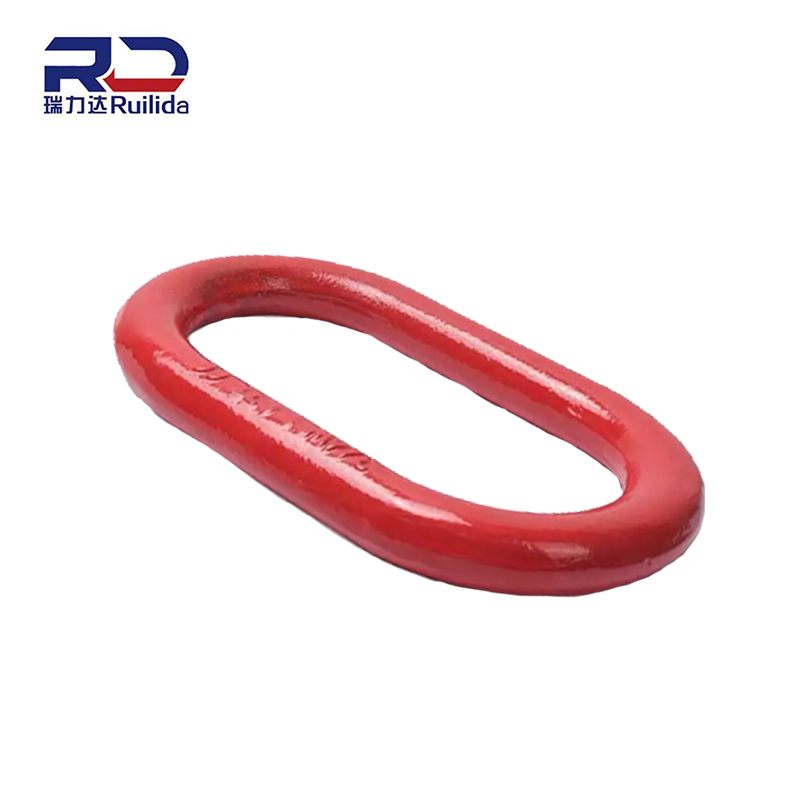

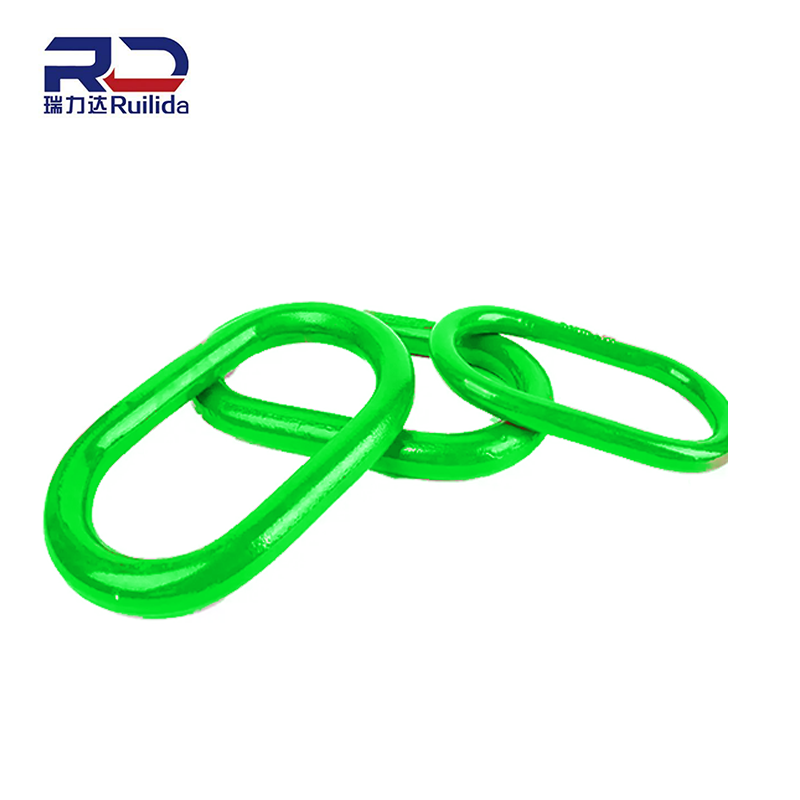

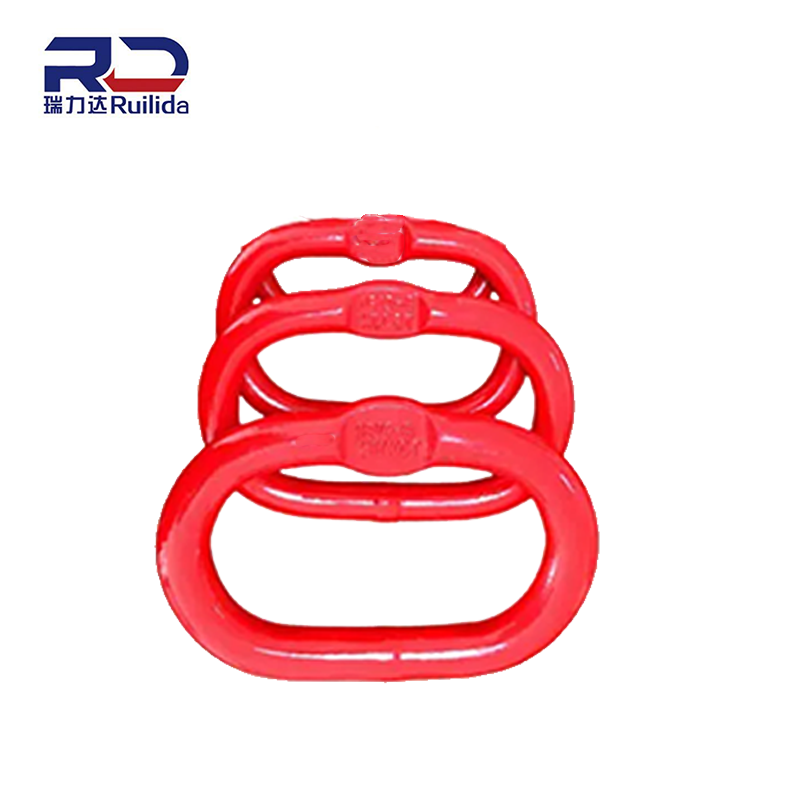

Welded single ring
Made of high-quality alloy steel and heat-treated;
Surface anti-rust treatment, strength grade reaches 8

Use

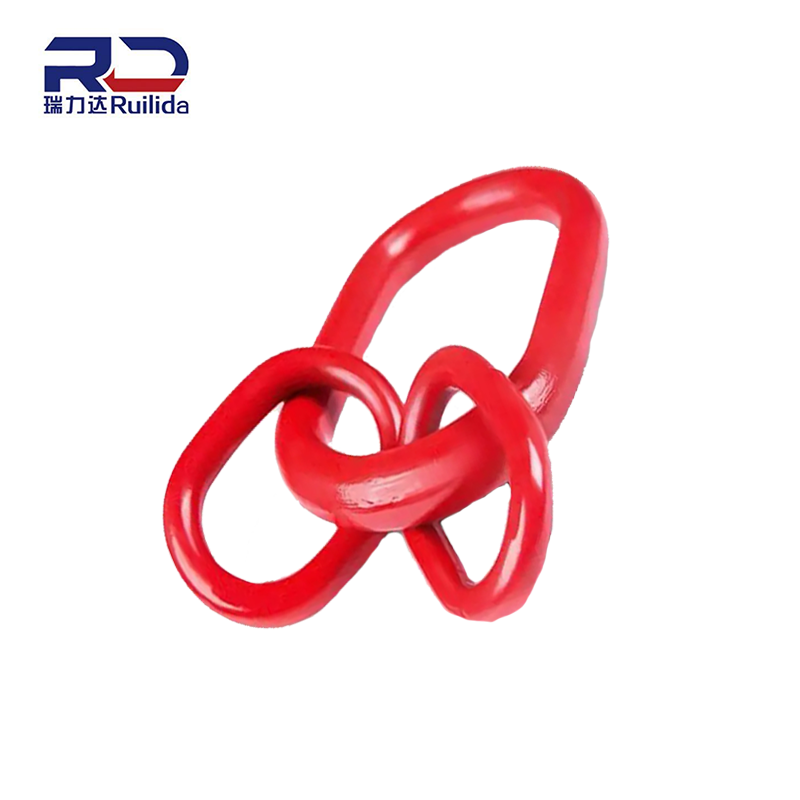

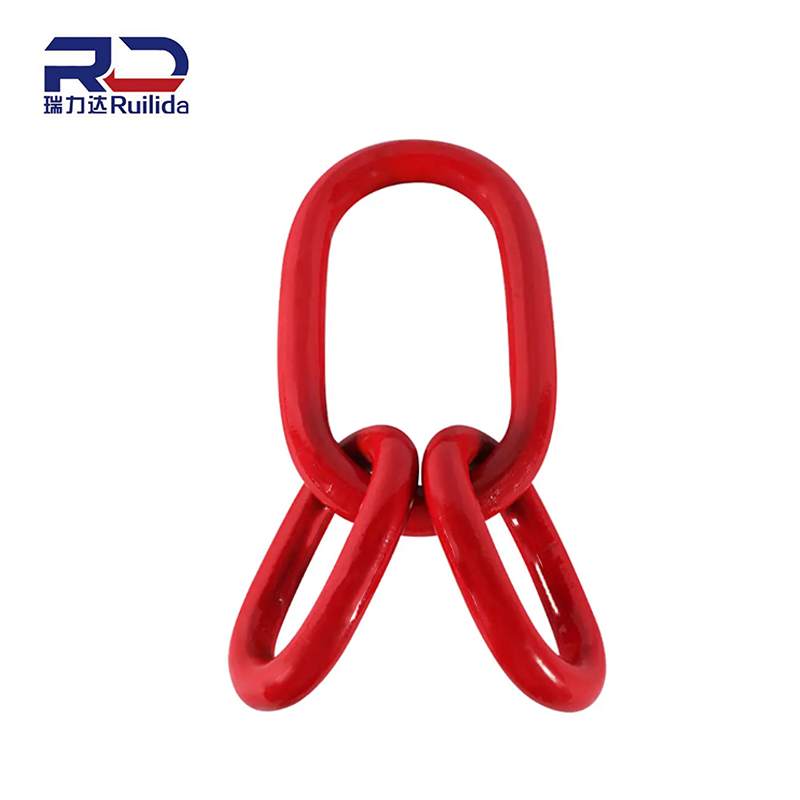

Welded ring is suitable for single-limb, double-limb and multi-limb slings, and can be used in combination with sub-rings, butterfly buckles,

shackles and other accessories. It can also be used as an intermediate main ring, connecting ring or end ring to connect the rope or lifting aid of the ring, wire rope and sling. This welding single ring combination method is flexible and convenient.

Dimensions and mechanical properties

serial number	specifications (mm)	Inner width a (mm)	weight (kg)	ultimate working load (t)	minimum breaking load (KN)
01J	22x155	40	1.28	10	480
▲02J	24x78	48	1.05	12	670
03J	26x78	48	1.25	16	670
04J	26x88	42	1.31	16	670
▲05J	26x100	50	1.47	16	670
06J	26x182	40	2.04	16	890
▲07J	30x128	58	2.31	22.5	890
08J	30x132	47	2.31	22.5	890
09J	30x162	40	2.64	22.5	720

▲10J	30x182	78	3.15	18	1140
11J	34x112	43	2.73	29	1140
▲12J	34x145	82	3.5	29	1140
▲13J	34x145	67	3.41	29	1140
14J	34x149	57	3.42	29	1140
15J	38x130	47	3.98	36.5	1450
▲16J	38x145	82	4.55	30	1200
17J	38x145	47	4.24	36.5	1450
▲18J	42x145	85	5.64	40	1600
19J	42x139	64	5.2	44	1750

Model description example:J type is automatic welding;▲the marked ones are preferred for use as intermediate main rings and connecting rings;single rings directly welded over 26mm must be made of high-quality alloy steel rich in Cr,Ni,and Mo;

Safety guarantee:4 times safety factor,2.5 times proof load.
