G100/G80
Ruilida
Purpose

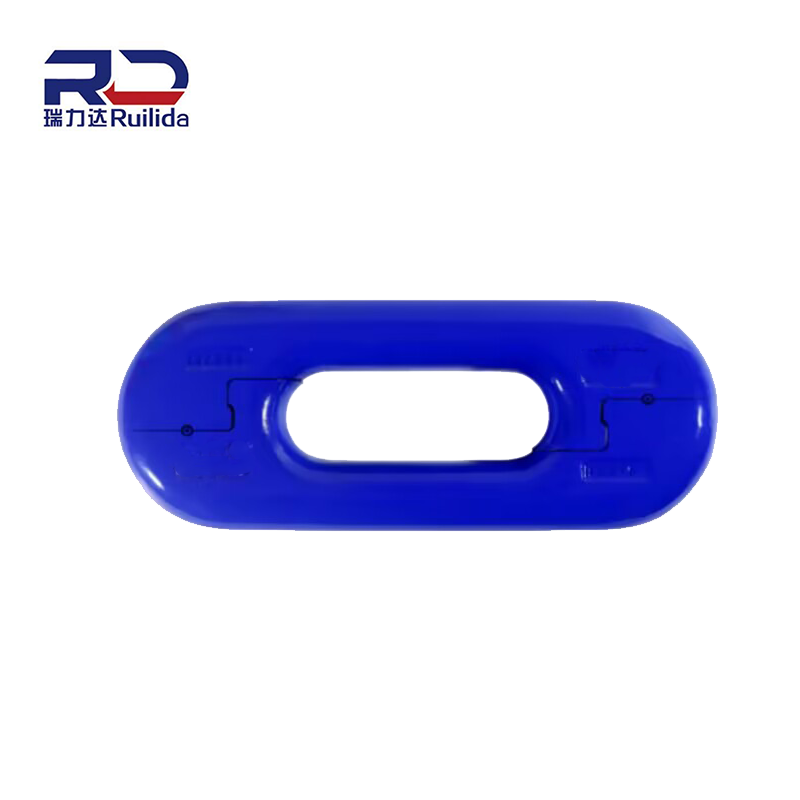

Used to connect mining round link chain, compact chain, and other connections.
Its unique shape Determines that it can only be used as a flat link and work horizontally.
The flat link must be installed horizontally to match the sprocket
Size
| Specifications and dimensions | t=p | l maximum value | c maximum value | b1 minimum value | b2 maximum value | minimum elongation at break | weight |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [KN] | [kg] |
| 34x126 | 126 | 297 | 36 | 37 | 99 | 1700 | 6.3 |
| 38x126 | 126 | 290 | 40 | 41 | 111 | 1910 | 7.5 |
| 38x137 | 137 | 322 | 40 | 41 | 111 | 1910 | 8.6 |
| 42x146 | 146 | 341 | 46 | 45 | 115 | 2300 | 10.4 |
| 48x144 | 144 | 334 | 56 | 51 | 127 | 2900 | 10.9 |
| 48x152 | 152 | 342 | 56 | 51 | 127 | 2900 | 12.7 |
| 56x187 | 187 | 412 | 65 | 60 | 131 | 4300 | 15 |
| 60x181 | 181 | 455 | 70 | 64 | 137 | 4900 | 20.7 |
Othor serial sizes such as 56x189-131,60x189-135
We can customize manufacturing according to customer requirements
Installation:
Ruili connection rings are equipped with installation and disassembly tools,depending on the type of connection ring.The kit includes punches,special wrenches,hexagonal wrenches that comply with ISO2936 and DIN911,etc.Please refer to Attachment 1 for details.
